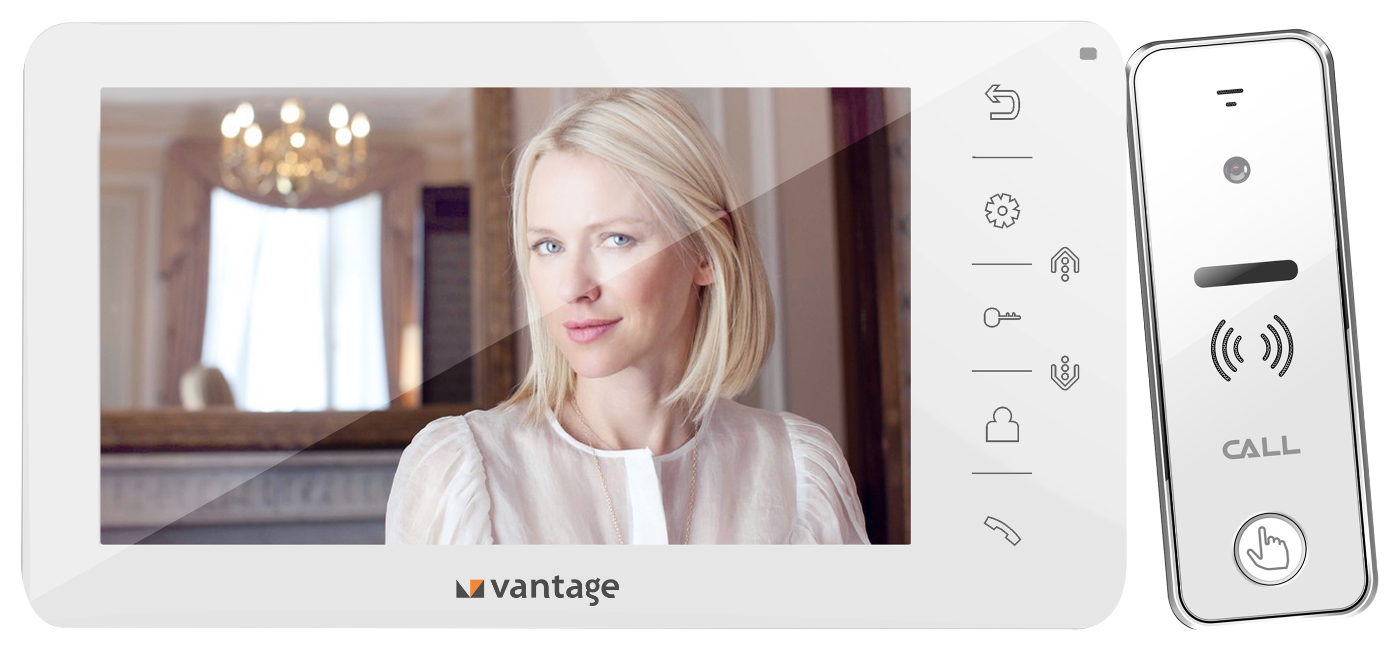

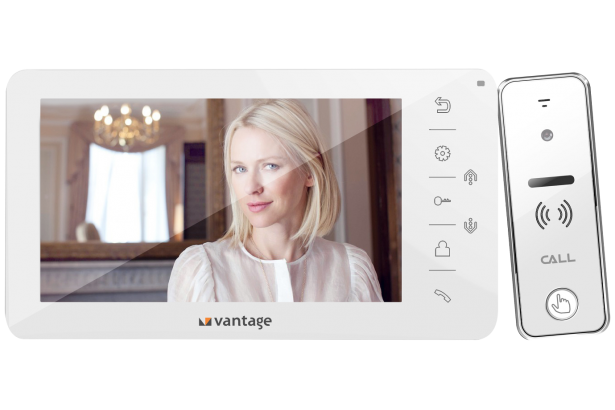

Audio/Video Door Phone System
VM-CS9581K-WE1
7" Colour VDP System
- Premium model with contemporary and stylish design
- 1/3" High resolution Pinhole Color Camera
- Handsfree Indoor monitor with 7" Color TFT screen
- Feather touch buttons
- Upto 12 polyphonic ring tones
- CCTV camera integration with upto 2 CCTV cameras support
- “Do not disturb” function for silent operation
- Time and date display, Intuitive GUI with OSD menu
- Function to talk-back, monitor, indoor calling, call transfer and door unlock
- Intercom functioning between indoor monitors
- White LEDs for night vision
- One door station can support upto 4 monitors
- Indoor monitors can support 2 door stations
| Parameter | Specifications |
| Indoor | |
| Power Input | DC 15V / 1A |
| Power consumption | 7W(Max). 0.7W(Standby) |
| Operating temperature | 0? to +40? |
| Operating humidity | 0%-95% |
| LCD size | 7 inch |
| Intercom function | Hands- free |
| Connection | 4 wires |
| Dimension | 210*116*25mm |
| Weight | 430g |
| Certifications | CE, FCC, RoHS |
| Outdoor | |
| Power Input | DC 10-15V |
| Power consumption | 2.5W |
| Operating temperature | -30°C to +60°C |
| Video output | 1Vp-p 75E |
| Resolution | 900 TV lines |
| Dimension | 133.2*48*15.5mm |
| viewing angle | 60° or 110° |
| Camera | Color CMOS |
| Certifications | CE, FCC, RoHS |
