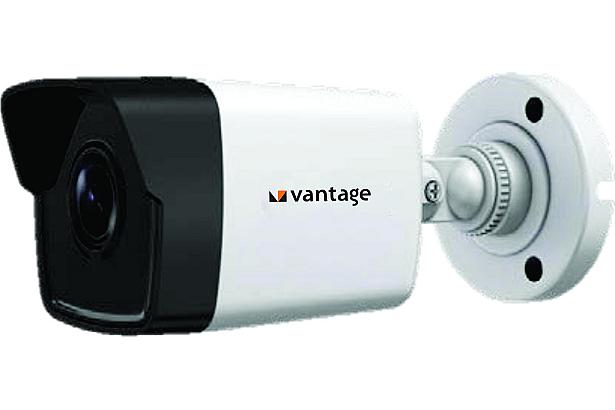

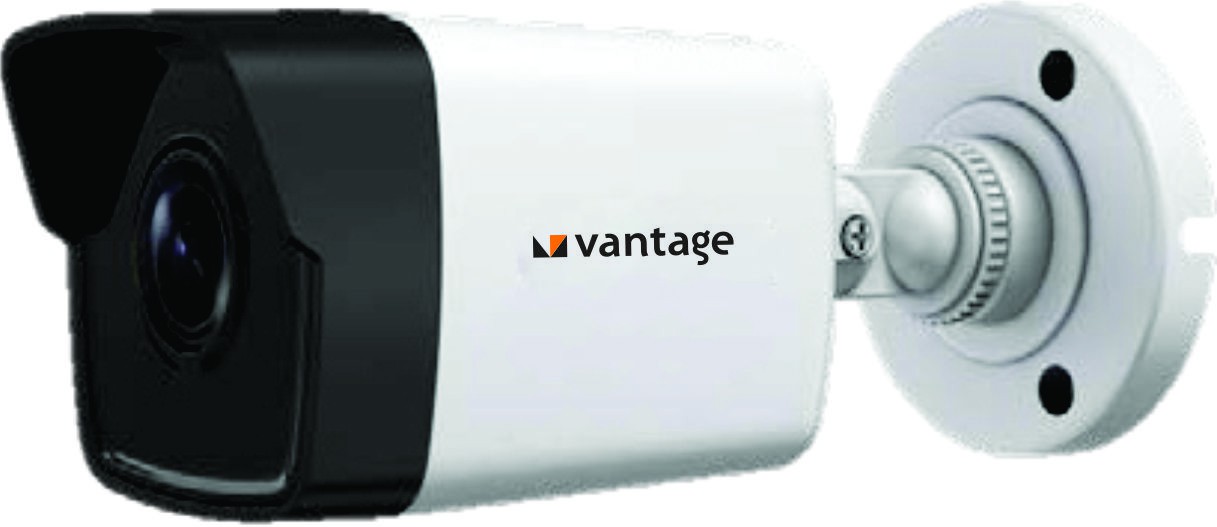

VP-NC3844B-F3IR1X1
IR NIGHT VISION FIXED CAMERA
- Ultra High Definition 5MP (2688 × 1520) resolution
- 1/3" Progressive Scan CMOS Sensor
- H.265+ video compression technology with real time encoding
- High performance IR Cut mechanical filter for True & Night Vision
- Inbuilt DWDR , 3D DNR & BLC, ROI functions
- Smart IR with intensity control
- IP67 Water proof outdoor enclosure
|
Parameter |
Specifications |
|
Camera |
|
|
Image sensor |
1/3” Progressive Scan Sensor |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
2688 × 1520 |
|
Minimum Illumination |
Color: 0.01 lux @(F1.2, AGC ON), |
|
Electronic Shutter Speed |
1/3s to 1/100,000 s |
|
Gain Control |
Auto |
|
White Balance |
Auto |
|
Signal to Noise |
> 52 dB |
|
|
|
|
Lens |
|
|
Lens Type |
3.6mmLens (2.8mm/4mm/6 mm optional) |
|
Lens mount |
M12 |
|
|
|
|
Day/Night |
|
|
Day & Night |
True Day & Night with ICR |
|
IR Cut |
High performance Mechanical IR Cut Filter with auto switch |
|
IR Source |
Inbuilt Smart IR LEDs with intensity control |
|
IR Range |
30 Mtr |
|
|
|
|
Compression |
|
|
Video compression |
H.265+, H.265, H.264, MJPEG |
|
H.265 / H.264 codec profile |
Main Profile |
|
H.265+/H.264+ |
Supported |
|
Video Bit Rate |
2688 × 1520 |
|
|
|
|
Resolution and |
|
|
Max. Resolution |
2688 × 1520 |
|
Main Stream |
50Hz:20fps @(2688 × 1520),20fps @(2304 × 1296),25fps @(1920 × 1080, 1280 × 720) |
|
Sub Stream |
50Hz: 25 fps @(640 × 360, 352 × 288) |
|
|
|
|
Operational |
|
|
ROI |
Supported |
|
Wide Dynamic Range |
DWDR |
|
Backlight compensation |
Supported |
|
DNR |
Inbuilt 3D DNR (Digital Noise Reduction) circuit |
|
Codec streaming capability |
Dual streaming |
|
Image settings |
Brightness, saturation, contrast, sharpness are adjustable via web browser or client software |
|
Security |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
|
Alarm trigger |
Video tampering, network disconnected, IP address conflicted |
|
|
|
|
Network & Remote |
|
|
Protocols |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, Protocols NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6, |
|
System compatibility |
ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI |
|
CMS |
Full function CMS ( Central monitoring software) |
|
Mobile Client Application |
Supports android and iOS APP for Smart phone and tablets |
|
Bandwidth control |
VBR (Automatic) and CBR (Manual) supported |
|
Network storage |
NAS (NFS,SMB/CIFS) |
|
|
|
|
Interface |
|
|
Ethernet |
1 RJ45 10/100 Self-adaptive Ethernet port |
|
Power Input |
Standard DC Jack |
|
|
|
|
Analytics Feature |
|
|
Smart Features |
Motion detection |
|
|
|
|
Electrical |
|
|
Power Requirement |
1 2 VDC ± 2 5% , PoE (802.3af) |
|
Power Consumption |
Max. 6W |
|
|
|
|
Environmental |
|
|
Enclosure |
IP 67 Water proof Outdoor enclosure |
|
Operating Temperature |
-30°C to + 60°C |
|
Operating Humidity |
95% or less (non-condensing) |
|
|
|
|
Mechanical |
|
|
Color |
White |
|
Dimensions |
69.1 mm ×66 mm × 172.7 mm |
|
Weight |
500g |
|
|
|
|
Certifications |
|
|
Certifications |
UL, CE, FCC, RoHS |
