Access Control & Time Attendance Solutions VV-RF105-26BE2

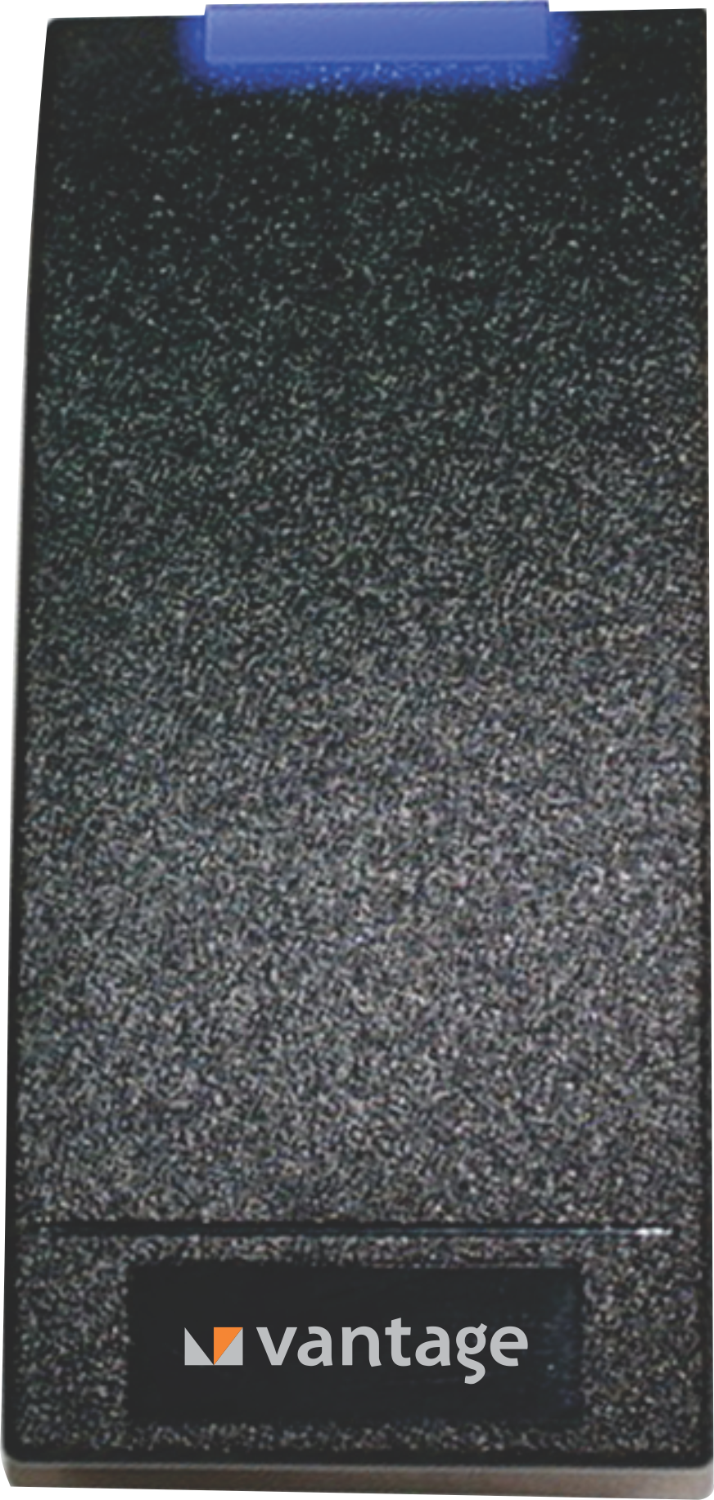

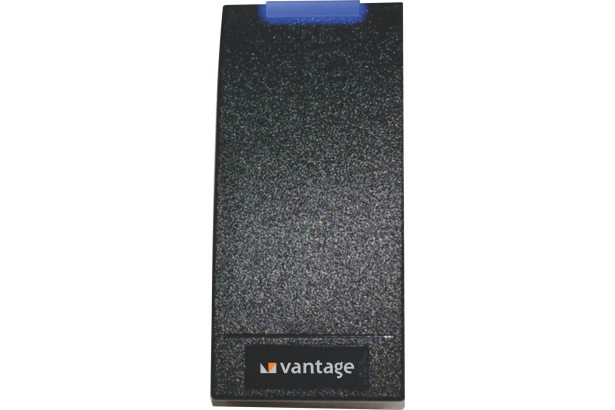

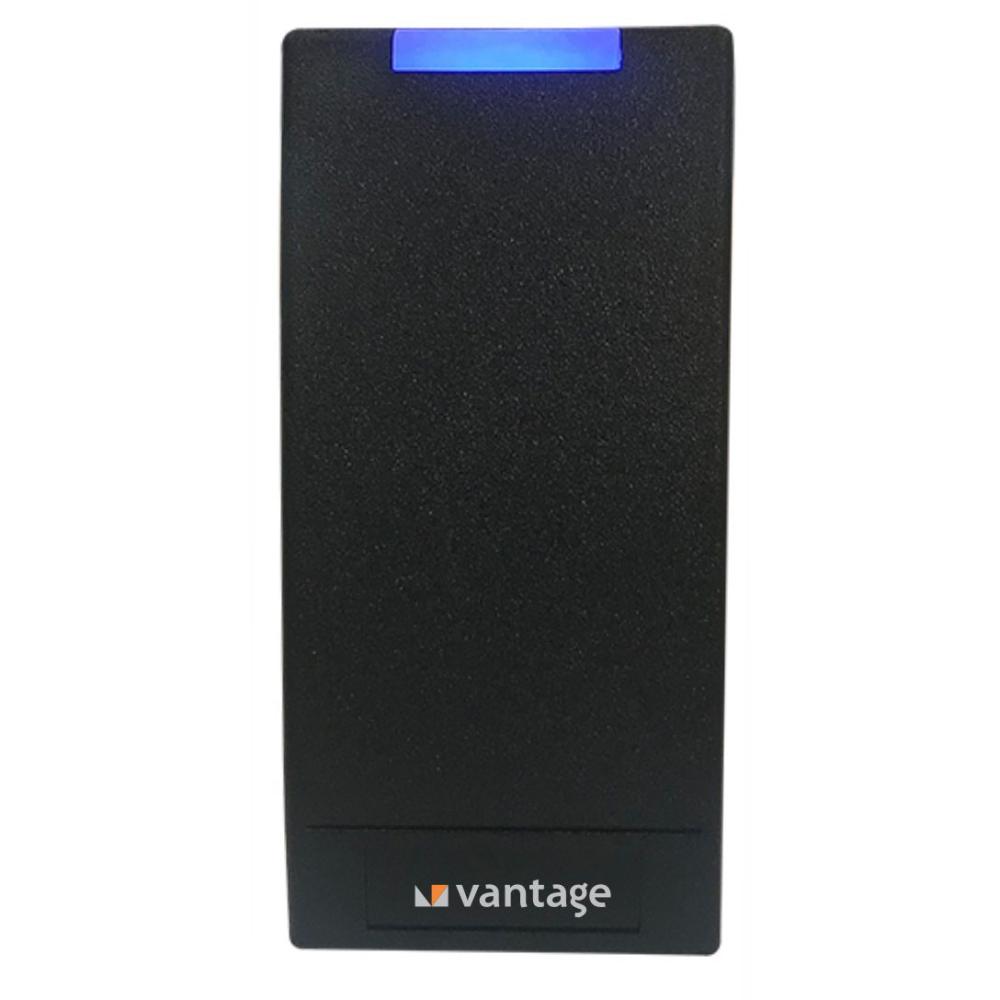

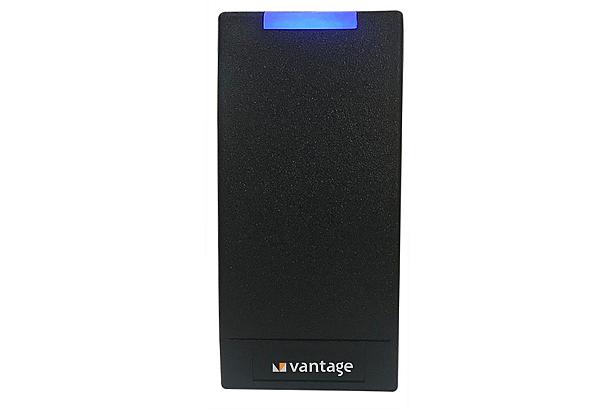

RFID Entry Exit Reader

RFID Entry Exit Reader
Image of 'Buzzer Sound' feature Image of 'Buzzer Sound' feature Image of 'EM Card' feature Image of 'Multicolor LED Indication' feature Image of 'Numeric Keypad' feature
  • Wiegand based Entry/Exit Readers
  • Operating frequency of 125 kHz
  • Read range of 3 to 5cm
  • Wiegand transmit distance 200Mtr
  • Multi-cards simultaneous read ability
  • Lightning proof protection
  • Premium ABS enclosure with blue LED indication
Parameter Specifications
Working Voltage DC 9 ~16V
Working current <=100mA
Communication Distance <=100 Mtr
Reading Range 3 to 5cm
Dimension 100 X 46 X 20(mm)
Output Format Wiegand 26/44
Working Temperature .-10~+70 °C
Working Humidity 10% to 95% R.H
Card Type EM-ID/Mifare
